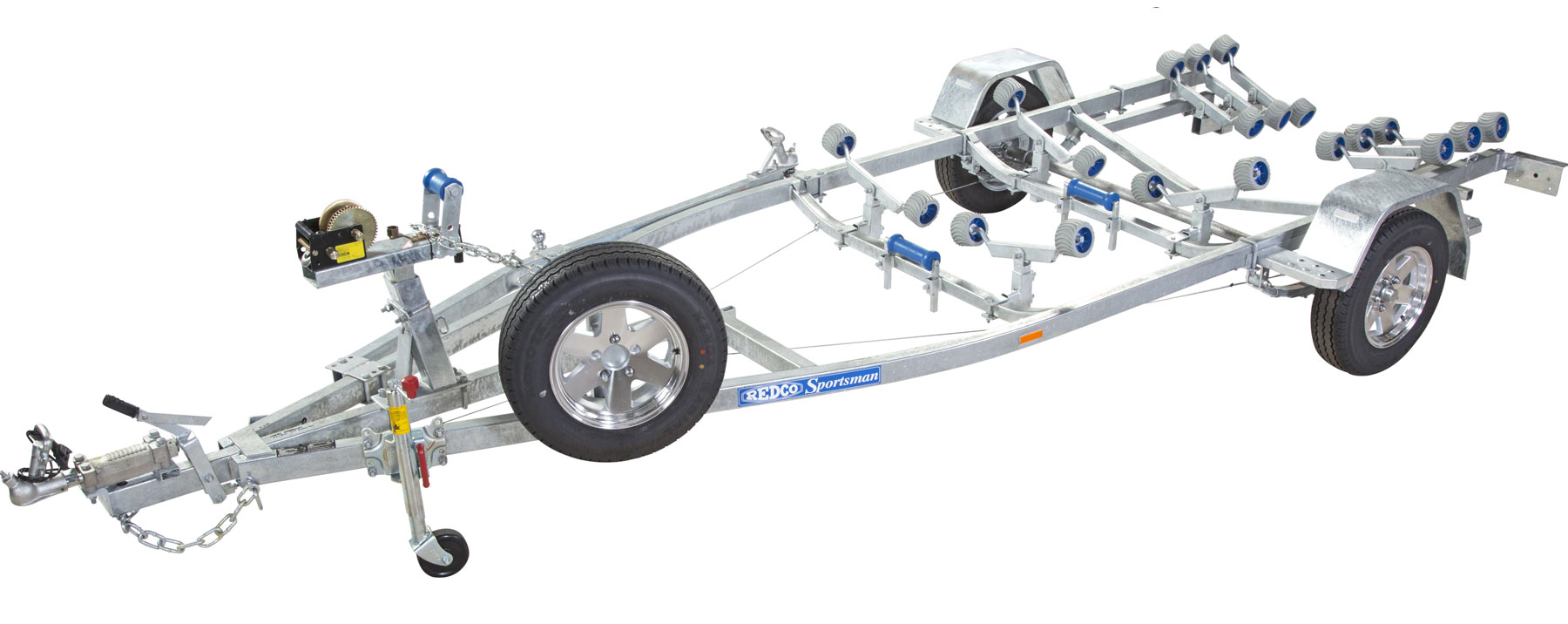

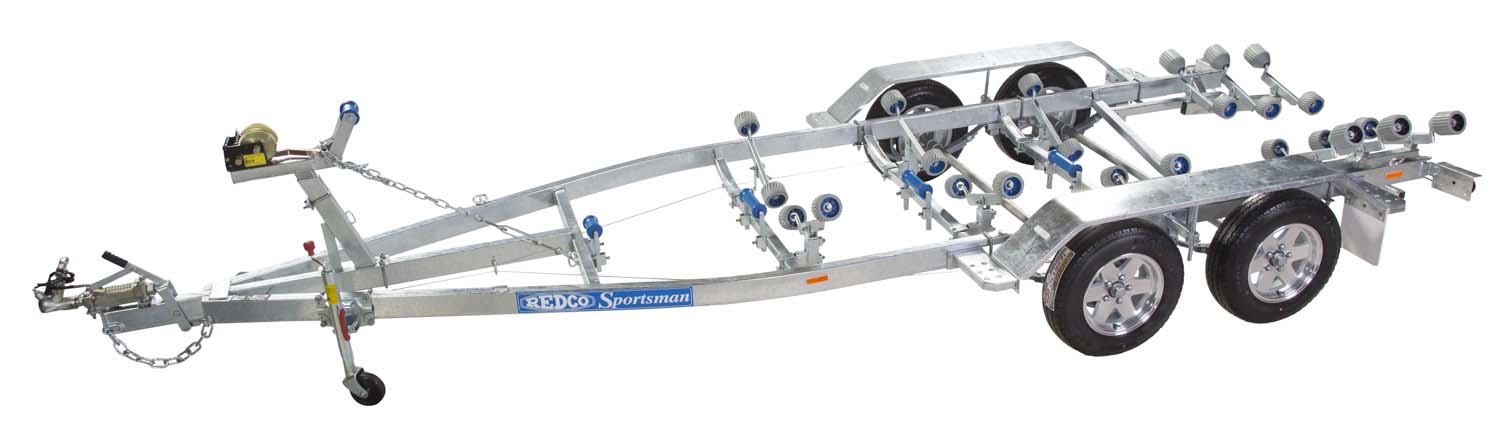

RE150 - RE170
Standard Equipment
- Galvanised axle, springs & hubs
- 2 year warranty on frame structure
- Snaplock couplings
- Trailers come standard with LED lights
- Quality galvanised wheels and tyres
- Plastic mudguards
- 6” swing up Jockey Wheel
- LED submersible lighting
- 20 Wobble roller supports
- 3 keel rollers supports
- Mechanical Over-ride Brakes
Upgrade options available
- UPGRADE TO ALLOY WHEELS
- Spare Wheel and Carrier
AUSTRALIAN MADE - BUILT WITH PRIDE TO PERFORM AND LAST
Trailer specifications
Model | Boat size (m) | ATM (kg) | Tare (kg) | Wheel size | Tyre size | Bearings | Brake type | Winch | Length O/A | Width O/A | Width between guards |
|---|---|---|---|---|---|---|---|---|---|---|---|
RE150-MO |
4.9 |
1300 |
260 |
13" |
165/8 ply
|
SL Ford
|
Mech/Override
|
3:1 Single | 5410 | 2075 | 1630 |
RE160-MO |
5.2 | 1300 |
320 |
13" |
165/8 ply
| SL Ford | Mech/Override |
3:1 Single
| 5550 | 2075 | 1630 |
RE170-MO |
5.5 |
1500
|
340 |
14"
|
185/8 ply
| SL Ford | Mech/Override | 5:1 2 Speed | 5960 | 2120 | 1610 |
RE160T-MO | 5.2 |
1990 |
440 |
13" |
165/8 ply
| SL Ford | Mech/Override |
5:1 2 Speed
| 5550 | 2120 | 1630 |
T = Tandem axle
MO = Mechanical override brakes
Specifications subject to change without notice. Please confirm measurements from bowsprit to transom for trailers over 22 feet.
